The Task: A Comprehensive Tool Management System
ZOLLER’s task was clearly defined: A comprehensive
tool management system that maps digital tool data,
from importing manufacturer data to configuring tools
and providing tools in the PTC Creo programming system
and NCSIMUL simulation software with just a click.
The Groundwork: Structuring the Manufacturing
Environment
Of course, no tool management system can set up a
basic framework or structure its own manufacturing
environment. Therefore, the first step for STIHL was to
develop an intuitive nomenclature to clearly identify all
components and designate mounted tools. Warehouse
space also needed to be structured and each individual
storage location clearly identified.
The diversity of materials with which STIHL works re
quire a wide variety of tools. We created an overview to
handle the task. Single components and complete tools
were clearly described and centrally categorized with
the TMS software module “Technology data and article
characteristics,” based upon both geometric and tech
nical process considerations. This allows operators to
view the applications and materials for which a tool is
available in the TMS database just by clicking a mouse.
The Database: Centralized Tool and Measuring Data
Management
Today, the ZOLLER tool management system is estab
lished as a database in test part service at STIHL. The
company works with software modules for tool ma
nagement, including warehouse management and item
statistics. The integration of presetting and measuring
machines is a major advantage. This means that not only
tool management data, but measuring data as well, is
available in the central database — including interfaces
to machines and to the CAM and simulation system.
The Expansion: Tool Data Import via Cloud Services
Now, a complete and consistent digital process chain is
a reality at STIHL. Tool data is imported into the ZOLLER
TMS Tool Management Solutions through the ToolsUnit
ed platform, which provides comprehensive informa
tion and technology data for some tool manufacturers
(e.g. Hoffmann Group). This means the tool management
system ensures digital consistency from manufacturer
data to the CAM system PTC Creo and simulation pro
gram NCSIMUL, as well as to the processing machines.

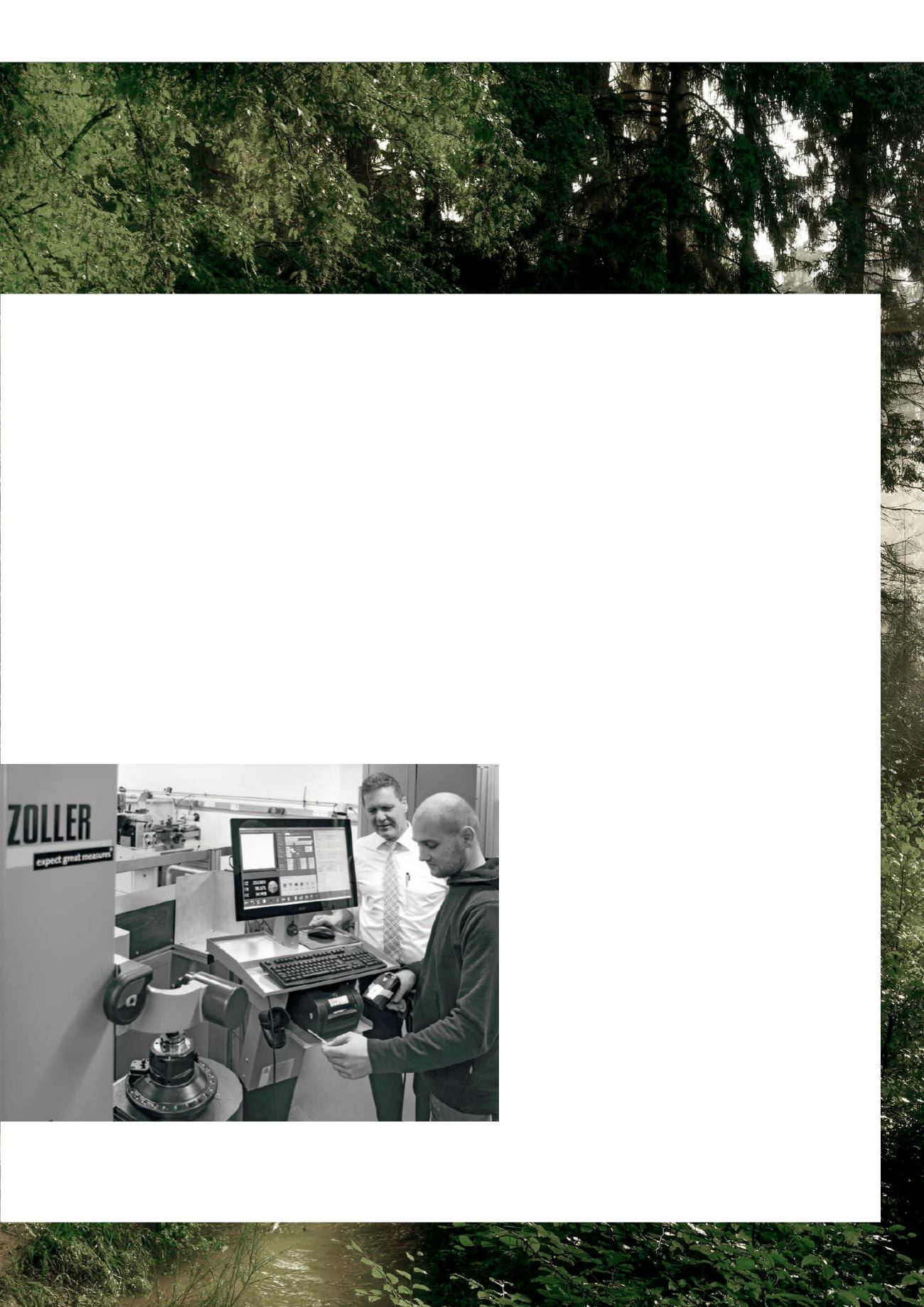

Simple tool identification using a QR code
