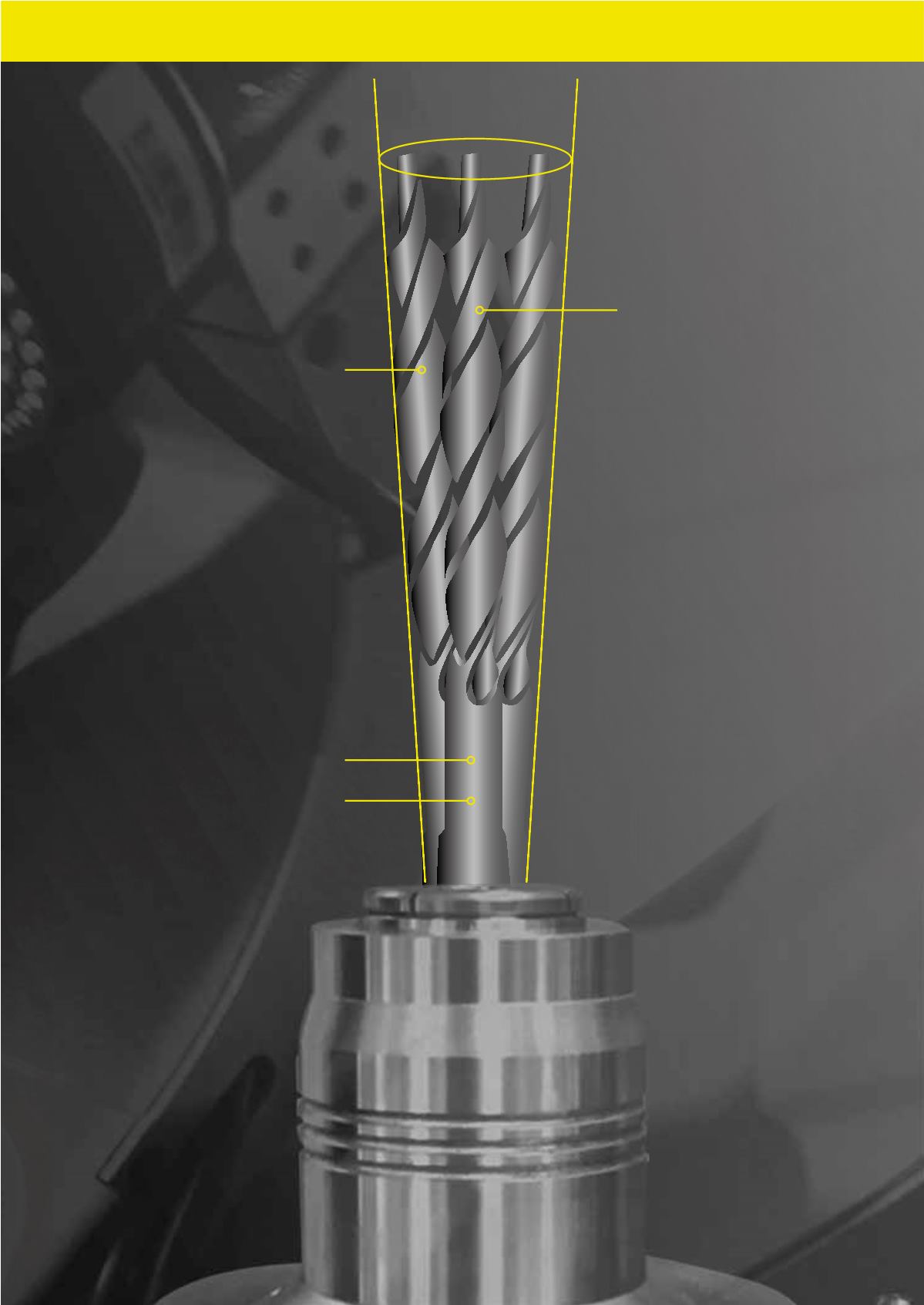

Wobbling center axis of tool.
Wobble arises as a result of tool
and/or locating tolerances
Corrected center axis of the
tool, computed from the
center points of measuring
planes 1 and 2 (X/Y).
Basis for measurements in
transmitted light after compensation
of circular runout and wobble.
360° measurement of measuring plane 2
360° measurement of measuring plane 1
